Installation & buying decisions
Dehumidifier capacity: compare the conditions, not just the pints
Understand 55 vs 120 pints, cooler-air ratings and why capacity, operating temperature and square-foot coverage are different checks.
6 minute read · Checked Oct 11, 2026

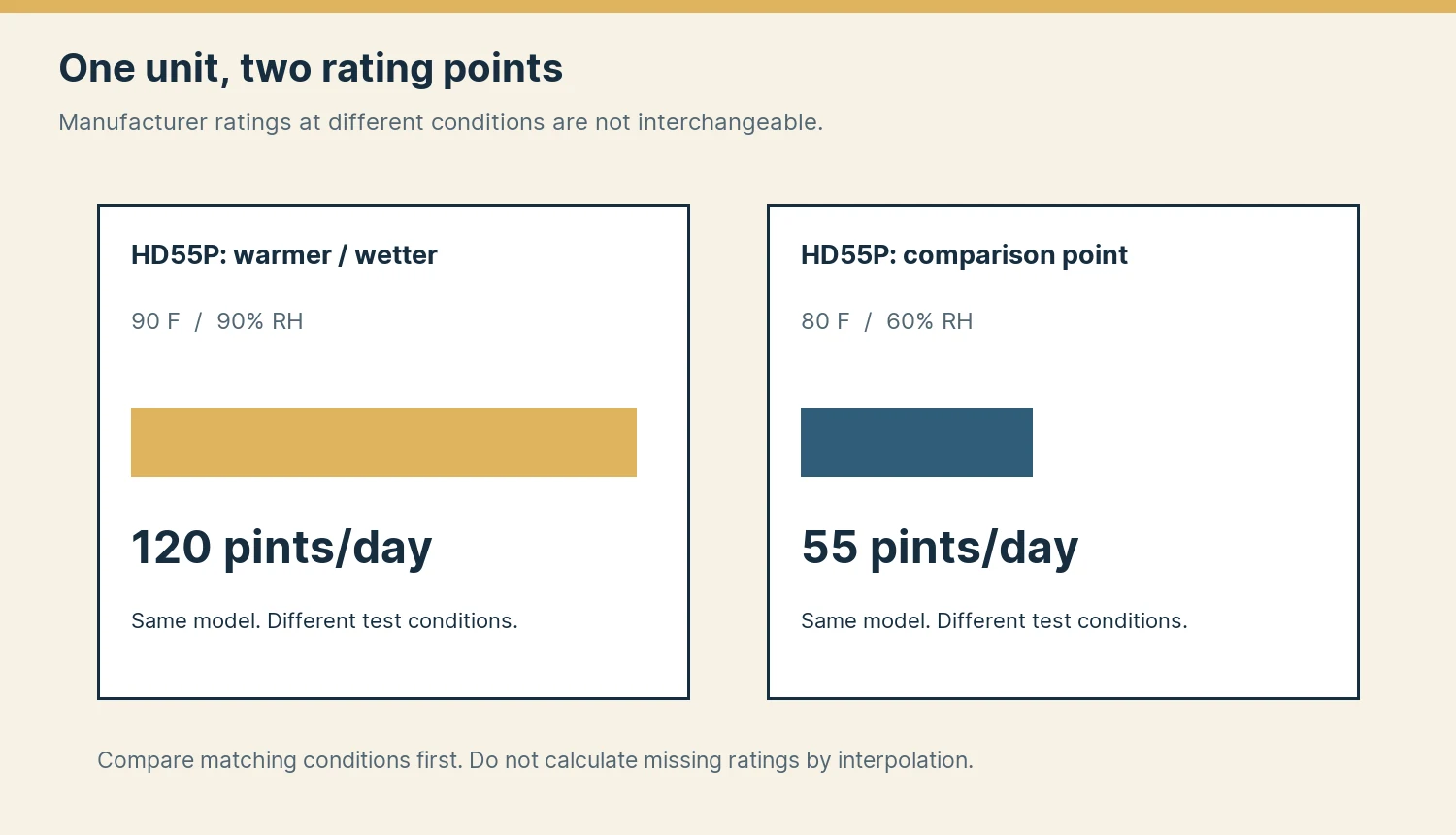

1. Two capacities can describe one machine
The current Sentinel HD55P listing gives 55 pints/day at 80°F / 60% relative humidity and 120 at 90°F / 90% RH. Those are two rating points for the same model, not evidence that it removes 120 pints in the conditions used for the 55-pint result. Always retain temperature, humidity and any stated test standard next to the number.
2. Start a comparison at matching temperature and humidity
Our current sources document the following rating points. A common temperature and humidity make a comparison more useful, but airflow, static pressure and the stated procedure can still differ. Where a standard is not established, we preserve that uncertainty instead of inventing equivalence.
| Current model | 80°F / 60% RH | 73°F / 60% RH | 65°F / 60% RH |
|---|---|---|---|
| HD55P R32 | 55 | — | — |
| HD55S White R32 | 55 | — | — |
| AprilAire E080 base | 80 | 65 | — |
| AprilAire E100 base | 100 | 85 | — |
| Santa Fe Compact70 4044110 | 70 | — | 43.7 |
| Santa Fe Ultra70 4044100 | 70 | 52.45 | — |
3. A cooler room changes the buying question
Compact70 publishes 70 pints/day at 80°F / 60% RH and 43.7 at 65°F / 60% RH. The warmer result does not promise the same output in a cool basement. The source rounds that cooler rating to 43.7; the current manual registration gives 43.75. Keep the source’s precision rather than treating the two figures as different units.
Do not interpolate a missing cooler-temperature rating or transfer one model’s reduction to another. A missing point stays unverified.
4. Operation at a temperature is not output at that temperature
An operating range and a capacity rating answer different questions. The operating range indicates the documented conditions in which the equipment can work. It does not quantify water removal at the lowest temperature. Check the minimum inlet-air temperature separately, especially for an unheated basement or crawl space.
5. Square-foot coverage is not a universal sizing formula
Area alone does not specify the moisture load. Ceiling height, outside-air leakage, water entry and the building’s moisture controls can change the situation. Compact70’s current sheet uses different ceiling-height assumptions for crawl-space and basement area claims. Two spaces with the same floor area can therefore need different installation assessments.
- Record space type, area and ceiling height.
- Record the actual inlet-air temperature and humidity conditions.
- Describe water entry, outside-air leakage and the existing moisture controls.
- Ask what assumptions support the proposed capacity, not only the area advertised on a listing.
Supporting sources: Santa Fe; manufacturer PDF hosted by AMGAir ↓
6. Compare fit first, then ask the capacity question
A higher rating does not make a unit fit a short shelf, a rising drain or an unsupported duct arrangement. Build the installation shortlist first. Then compare capacity points, current-generation evidence and the installer’s moisture-load assumptions. Keep uncertainty visible rather than converting unrelated data into a single score.
Build a shortlist around your installation →Follow the evidence
Sources & further reading
Open the original material for the full context. A product specification is not an independent test.
- manufacturer specAprilAire E080 Specification Form 961 03.24
AprilAire; manufacturer PDF hosted by Sylvane · Checked Oct 11, 2026
Version: Form 961, 320713, 03.24PDF p1 table and dimension footnote 3; p2 installation optionsCabinet table uses rounded dimensions; diagram has detailed callouts. Rated capacity/current at 0 ESP. No claim that nominal height equals installed height.
- manufacturer specAprilAire E100 Specification Form 962 04.24
AprilAire; manufacturer PDF hosted by Sylvane · Checked Oct 11, 2026
Version: Form 962, 320925, 04.24PDF p1 table and dimension footnote 2; p2 installation optionsDo not merge variant bundles. Separate retailer installation guides are 10015109 B2209062B 1.21; use 2024 combined manual for detailed clearance/drain instructions.
- manufacturer specAlorAir Sentinel HD55P R32 Specification Sheet
AlorAir · Checked Oct 11, 2026
Version: Filename 20250917; publication date not independently verifiedPDF p1 specifications; p2 narrativeManufacturer claim; no independent testing. p1 current 3.51 A conflicts with p2 3.1 A, so current is not normalized here. Exact manufacturer Shopify SKU is associated through product-page link, not printed in sheet.
- manufacturer specAlorAir Sentinel HD55S White R32 Specification Sheet
AlorAir · Checked Oct 11, 2026
Version: Filename 20251218; publication date not independently verifiedPDF p1 specification table visually inspectedListing and sheet agree on dimensions/capacity/R32 but list different weight; manufacturer site narrative also has R410A copy. No cross-model noise ranking from incomparable conditions.
- manufacturer manualSanta Fe Compact70 4044110 Installation Instructions TS-2081 Rev C
Santa Fe / AprilAire official DAM · Checked Oct 11, 2026
Version: TS-2081 Rev C, 04/26PDF p4 exact4044110 registration; p3 safety; p5 layout; p6 drainp3 generic 1-ft airflow clearance and p5 11-inch return diagram conflict; do not resolve to 11 inches as universally safe. Current DAM revision differs from main Rev A 07/24 and retailer Rev B 01/26.
- manufacturer specSanta Fe Compact70 4044110 Data Sheet TS-2108 Rev B
Santa Fe; manufacturer PDF hosted by AMGAir · Checked Oct 11, 2026
Version: TS-2108 Rev B, 01/26PDF p1 performance, dimensions and sizing footnotesSpec rounds 43.7; manual registration gives 43.75. Manufacturer area ranges depend on different ceiling heights, not a universal moisture-load sizing formula.
- manufacturer specSanta Fe Ultra70 4044100 Specification Sheet TS-2111 Rev B
Santa Fe / AprilAire official DAM · Checked Oct 11, 2026
Version: TS-2111 Rev B, 01/26PDF p1 table, drawing and footnoteTable footnote dimensions include collars; 22-inch body and 28-inch collared depth should be labelled separately. Ratings are manufacturer measurements, not our tests.
- manufacturer productSentinel HD55P product details
AlorAir · Checked Oct 11, 2026
SKU RF02ALOS-Sentinel-HD55P-0YDMW00. Specification table: 55 pints at 80°F/60% RH, 120 at 90°F/90%; R32.Exact R32 SKU listing supplies the capacity and pump claim. Cabinet dimensions and operating range use the separately linked current R32 specification; do not transfer them from HD55S.
