Built-in pump, external pump or gravity drain?

1. Start at the drain destination

Trace the entire route from the dehumidifier outlet to the intended drain. Gravity drainage needs a continuous downhill route. If the water must rise, the installation needs a documented pumping arrangement. A hose connected to a gravity outlet cannot lift water by itself. Moving the unit to a stand may change the route, but also changes cabinet height and access.

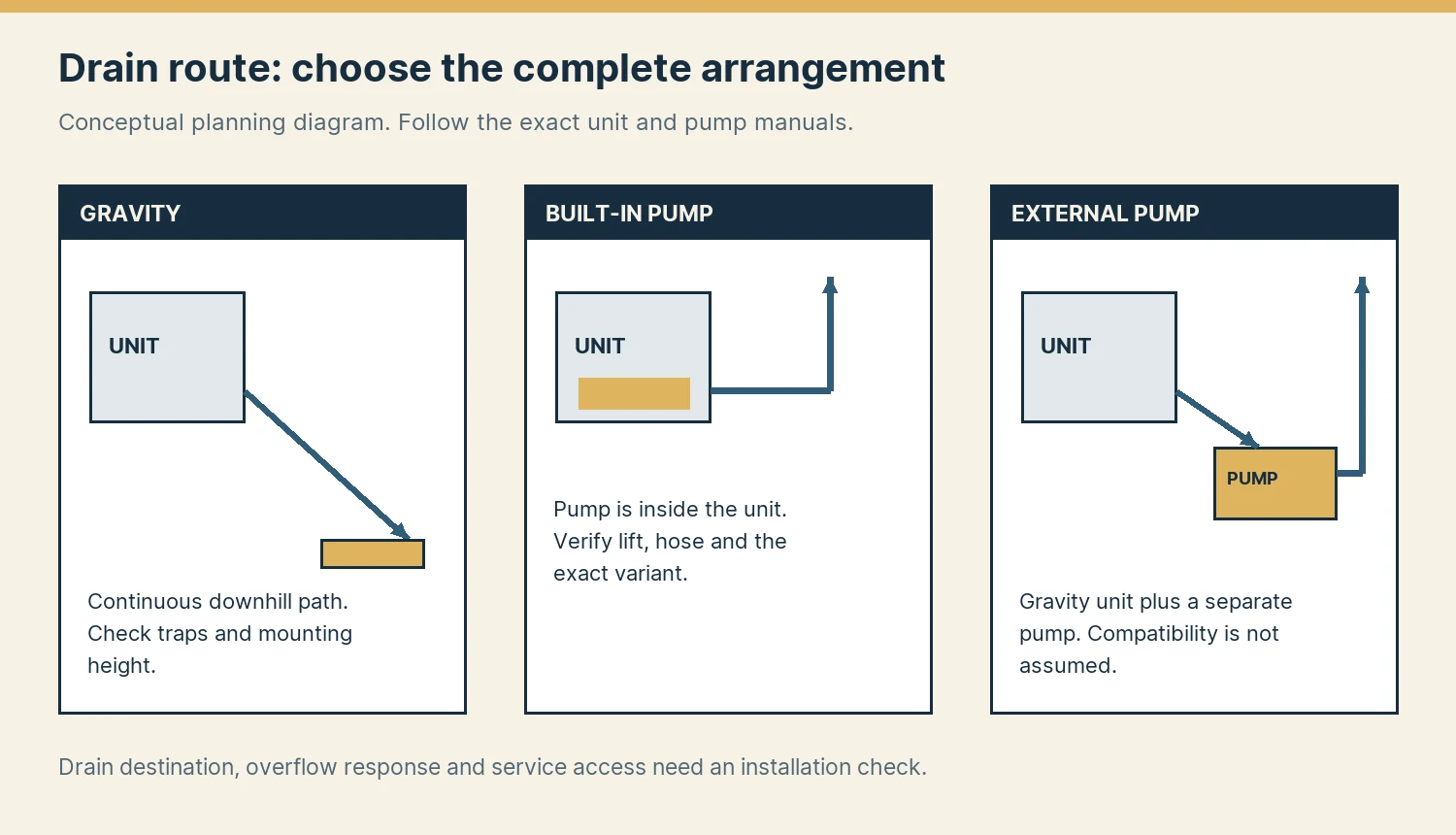

Original planning diagram showing gravity drainage, a built-in pump and a gravity unit paired with an external pump — Three conceptual arrangements. The diagram does not specify plumbing approval, pump lift, hose limits or required traps.

Supporting sources: AprilAire; manufacturer PDF hosted by Sylvane / Santa Fe / AprilAire official DAM ↓

2. Compare complete arrangements

A built-in pump combines the equipment in one unit. An external condensate pump adds a separate reservoir, connection and service item to a gravity unit. Neither arrangement is automatically better for every home: verify the route, accessory support and what happens if the drain blocks.

Questions to resolve before selecting the arrangement.
Arrangement	What it confirms	What still needs checking
Gravity unit	The unit documents gravity drainage.	Continuous downhill route, trap requirements and mounting height.
Built-in pump	The exact variant includes pumping.	Vertical lift, hose limits, controls and failure response.
Gravity unit + external pump	The unit supplies an external pump by gravity.	Pump compatibility, reservoir access, connections and shutoff provisions.

The external-pump branch in our guide lists gravity units. It does not claim that an accessory is included or approved for every model.

Supporting sources: AprilAire; manufacturer PDF hosted by Sylvane / AlorAir ↓

3. A trap requirement is model-specific

Current Santa Fe Compact70 and Ultra70 instructions require a water trap. AprilAire’s FAQ says E070, E080, E100 and E130 do not require a trap for the unit’s design, although an installer may require one for other reasons. Do not copy a drain arrangement between brands or treat a unit-design statement as a decision about every plumbing installation.

Supporting sources: Santa Fe / AprilAire official DAM / AprilAire ↓

4. Keep vertical lift separate from total hose length

A pump’s vertical lift is not its total drain-hose length. The current HD55P listing advertises a 19.6-foot drain height, while its linked older family manual shows 9.6 feet in a lift diagram and mentions 19.6 feet for a drain pipe. We have not reconciled those values for the current R32 SKU. Ask for written confirmation of the current pump limits rather than selecting the larger number.

HD55P pumping is documented. Its exact current-generation lift limit remains unresolved between the listing and linked manual. This guide does not guarantee a 19.6-foot vertical rise.

Supporting sources: AlorAir ↓

5. Check the accessory and failure response together

The AprilAire E080/E100 combined manual describes external condensate pump model 4856 with a maximum lift of 22 feet and normally closed contacts connected to the float-switch terminals. That is a specific documented accessory example, not the lift capacity of the dehumidifier or a rule for other pumps. Have the installer check the current accessory, wiring and shutdown requirements.

Name the exact pump model, inlet connection and intended route.
Keep the reservoir and tubing accessible for maintenance.
Check the documented overflow or shutdown arrangement.
Confirm limits with both the unit manual and pump manual.

Supporting sources: AprilAire; manufacturer PDF hosted by Sylvane ↓

6. Compare the installed cost, then build the shortlist

Ask for the unit, pump if required, stand or suspension, drain fittings, controls and labor to be itemized. A cheaper unit can require more accessory work. A pump solves routing only when its documented limits suit the whole route; it does not solve an undersized unit or water entering through the building.
