Dehumidifier access through a 12-inch crawl-space hatch

Measure the clear opening instead of the door label

Measure the narrowest usable height and width after accounting for the frame, sill, hinges, door stops and nearby obstacles. Check whether the door can be opened fully without modifying the structure. The nominal size of a hatch can be larger than its clear passage. Record the floor-to-opening step as well: a cabinet may clear the first edge but still lack room to turn or lower into position. Write down the measurements rather than relying on a photograph alone.

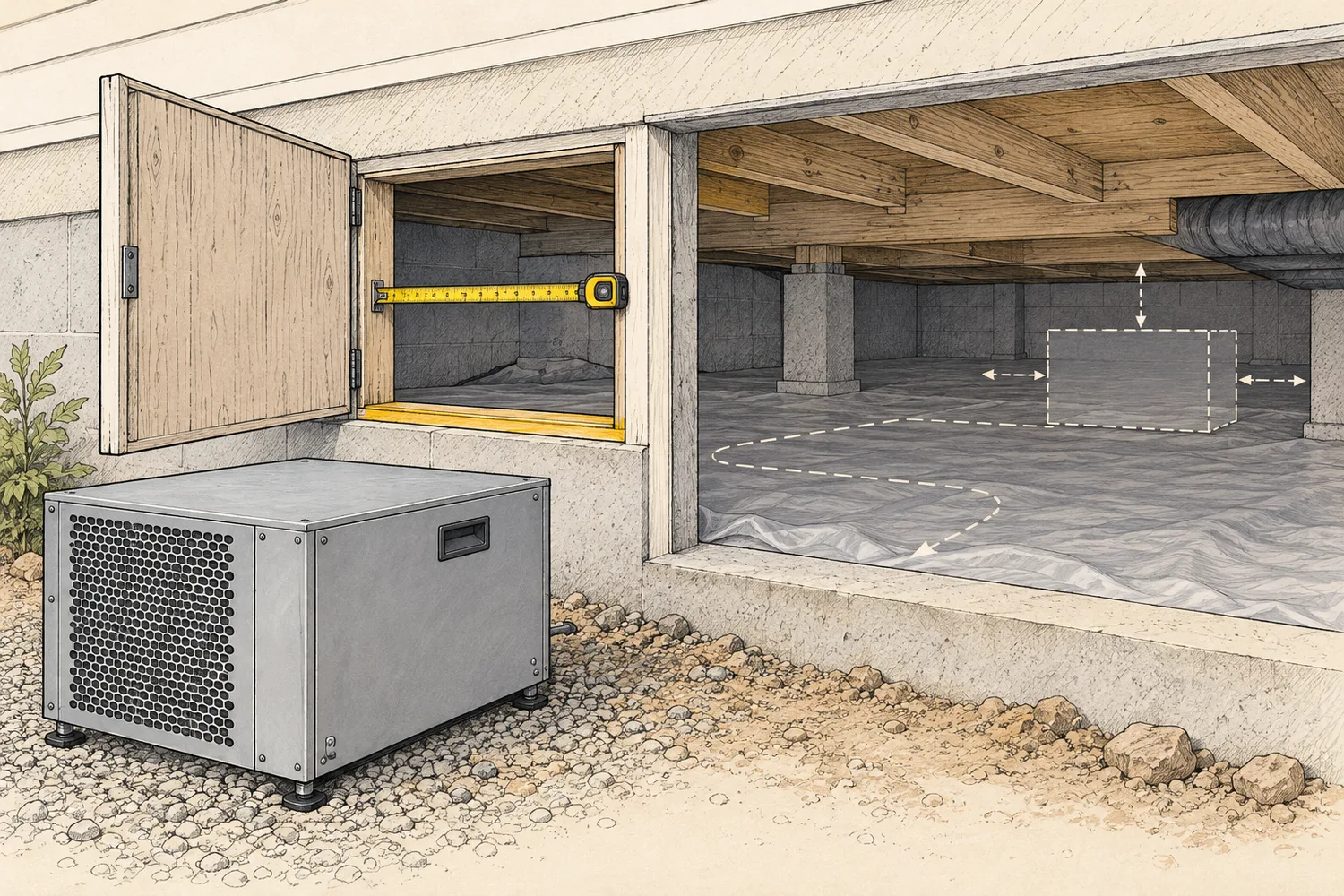

An illustrated crawl-space hatch, a cabinet outside it and a separate proposed service area inside — Illustration only, not a scale drawing or an installation plan. Measure the opening and the complete route separately from the final service envelope.

Supporting sources: AprilAire; manufacturer PDF hosted by Sylvane / Santa Fe / AlorAir ↓

Compare all three dimensions and the permitted handling orientation

Choose the proposed orientation and compare the relevant two cabinet axes with the opening. The longest axis then needs a clear turning route inside. Published dimensions may exclude feet, handles or collars, so inspect the exact drawing and what can legitimately be removed for transport. Do not assume the appliance may be tilted, opened or partly disassembled simply because that would make it pass. Handling and settling instructions belong to the exact delivered model manual.

Recorded cabinet dimensions; no row guarantees hatch passage
Model	H × W × D (in.)	Access implication
AlorAir Helios D35	10.76 × 11.25 × 16.4	Both short axes are under 12; route and protrusions remain separate
AlorAir HD55P	11.85 × 11.69 × 17.64	Small nominal margin at a 12-inch opening; verify the whole envelope
Santa Fe Compact70	12 × 12 × 21	An exact 12-inch measurement leaves no demonstrated handling margin
Santa Fe Ultra70	12 × 12 × 22 body	Documented collars extend depth to 28 inches

A manufacturer’s cabinet dimension is not a promise that the unit will pass your hatch.

Supporting sources: AlorAir / Santa Fe / AprilAire; manufacturer PDF hosted by Sylvane ↓

Walk the route all the way to the intended position

Look for posts, pipes, ductwork, cables, uneven ground and the turn between the hatch and the equipment location. Check the route for the replacement unit as well as the current purchase: an installation that cannot be serviced or removed creates a future problem. Give an installer the narrowest passage and turning dimensions, not only the final open area. If measurements are close, request a drawing-based access assessment before placing the order.

Measure the hatch, the first turn and every narrower passage.
Include fixed obstructions and any step down into the space.
Confirm the manufacturer’s permitted transport orientation.
Keep a future removal route for repair or replacement.

Supporting sources: AprilAire; manufacturer PDF hosted by Sylvane / Santa Fe / AlorAir ↓

Reserve a second envelope for servicing and drainage

The final position needs space for air intake and discharge, filter extraction, panels and drain fittings. Compact70 documents a 24-inch supply-side space and an 11-inch return-side figure, while its general safety text gives 12 inches; those instructions need reconciliation for the layout. Ultra70 separately calls for 13 inches on the filter-removal side and has additional drain requirements. None of these spaces can be assumed to be included in the small cabinet dimension.

Cabinet, airflow space, filter access and drain route shown as separate parts of an installation envelope — The transport envelope and the installed service envelope solve different problems. Use the exact model manual for the required distances.

Supporting sources: Santa Fe ↓

Use a short cabinet shortlist, then verify the complete fit

A low-profile model may make access possible, but the smallest body is not automatically the right capacity or drain solution. D35 is a gravity-drain candidate; HD55P is a pump candidate, with unresolved published lift claims. Compact70 and Ultra70 have different duct and drain layouts despite their similar body height. Keep any model with unresolved required dimensions out of a confirmed fit decision until the shipped version is established.

Supporting sources: Alorair / AlorAir / Santa Fe / Santa Fe / AprilAire official DAM ↓

Start with the low-clearance shortlist →

Before ordering, get the access assumptions in writing

Ask which supplied parts are included in the transport dimensions, whether any removable collar changes the figure, and how the unit will reach the proposed location. Confirm that no structural alteration is assumed in an equipment-only quote. Keep the delivery model, return conditions and access assessment together. A successful selection is a documented route plus a serviceable installation, rather than a single reassuring height number.

Supporting sources: AprilAire; manufacturer PDF hosted by Sylvane / Santa Fe ↓

Use the complete installation checklist →
